Cita EV Smart Charger 7kW/22kW
Cita EV Smart Charger 7kW/22kW
Couldn't load pickup availability

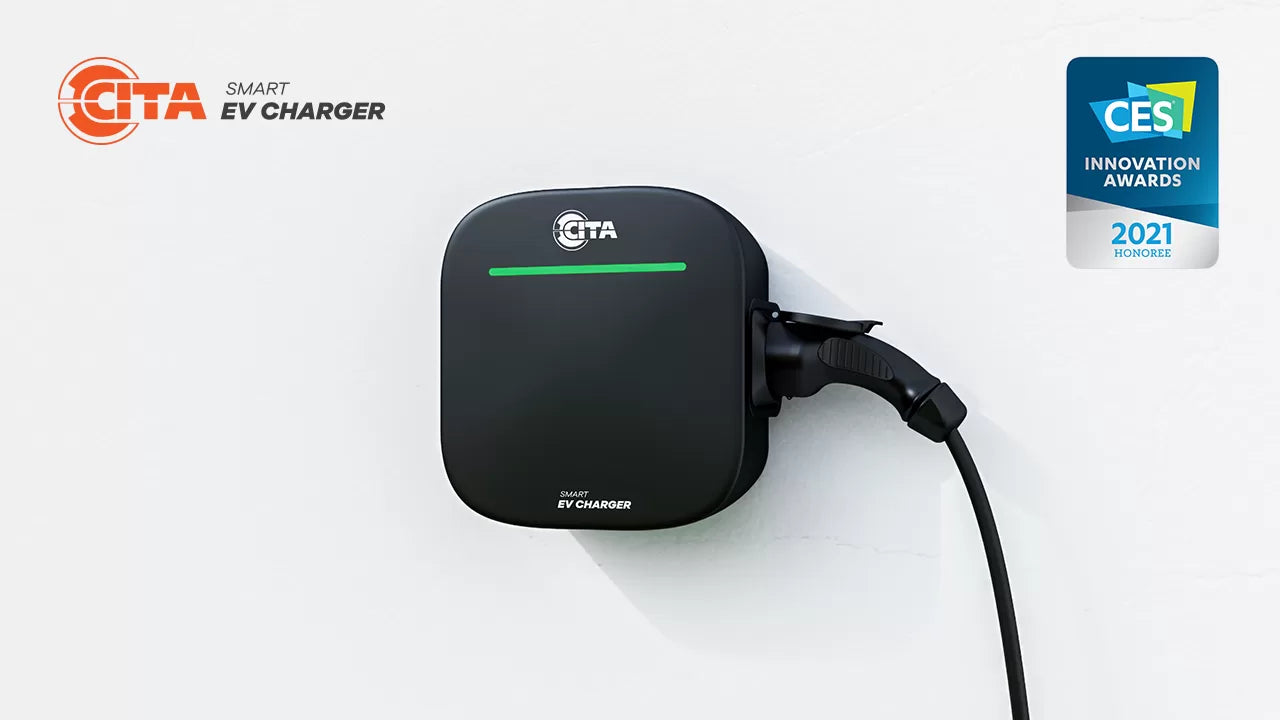

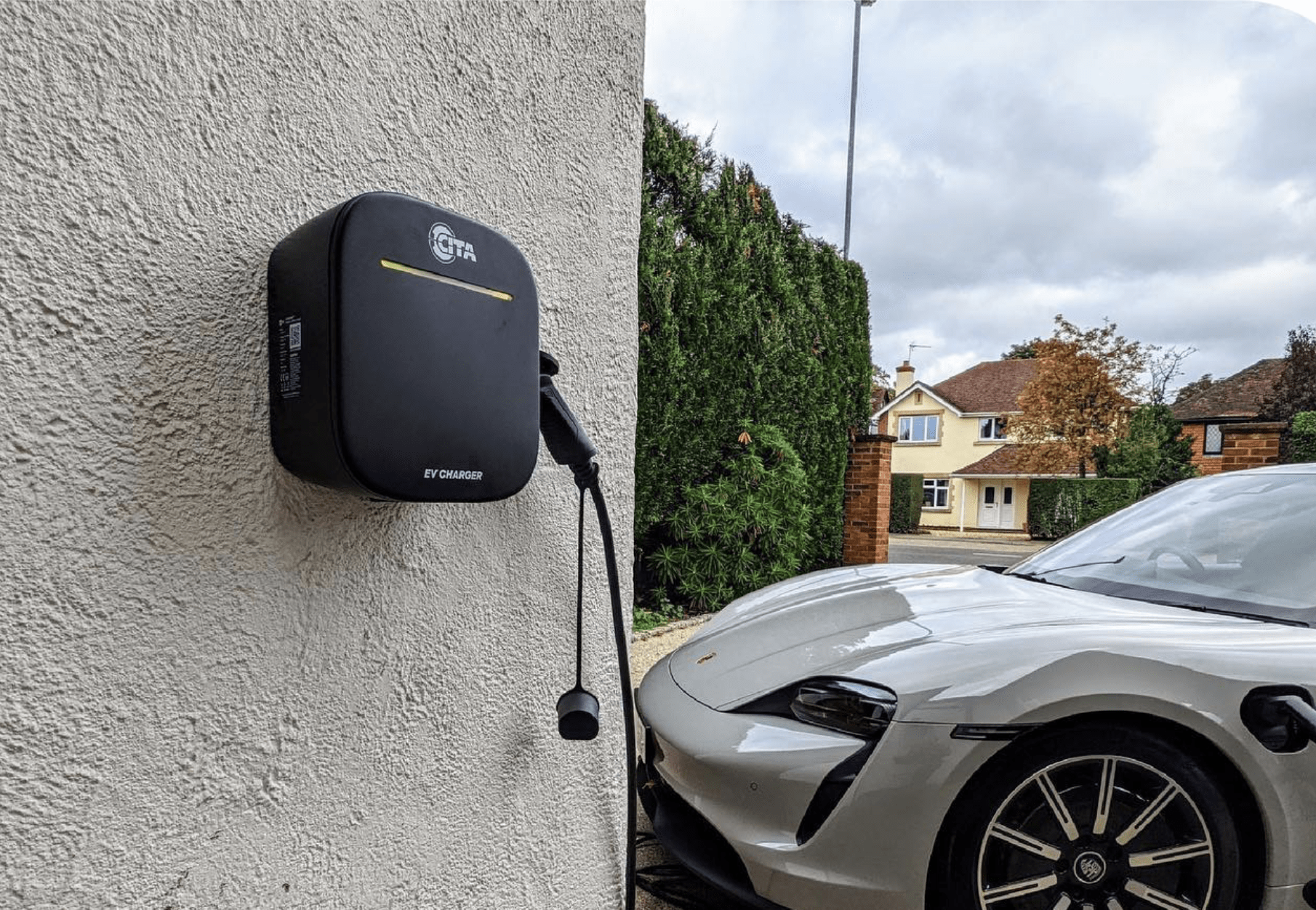

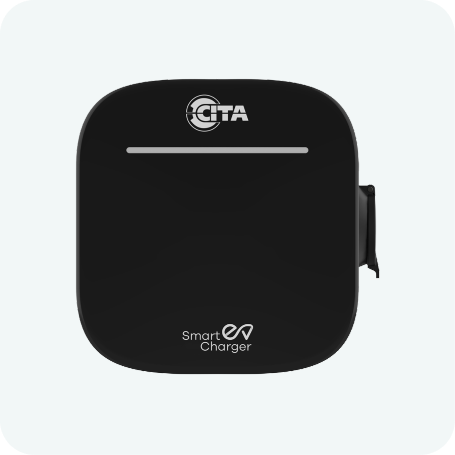

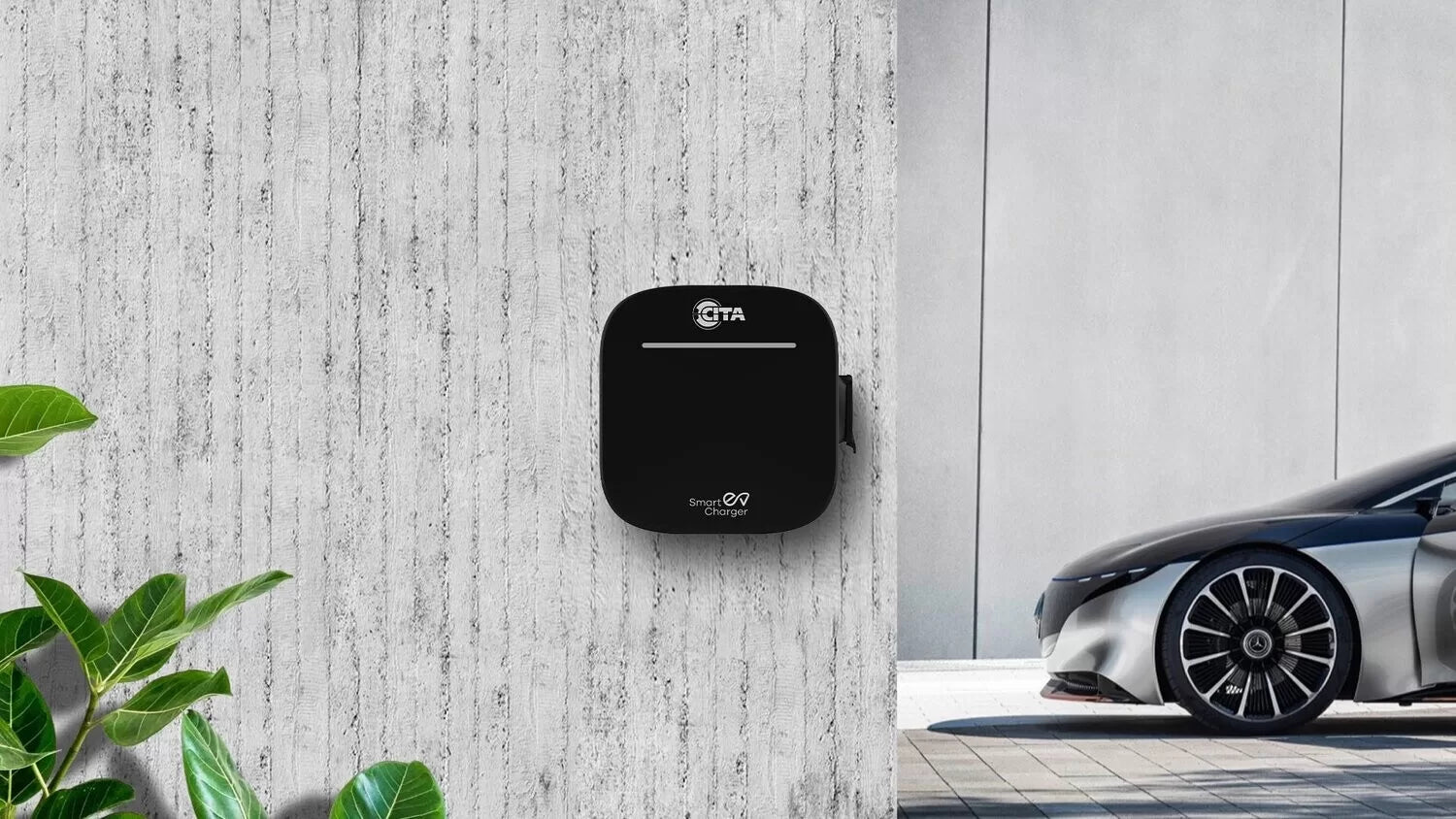

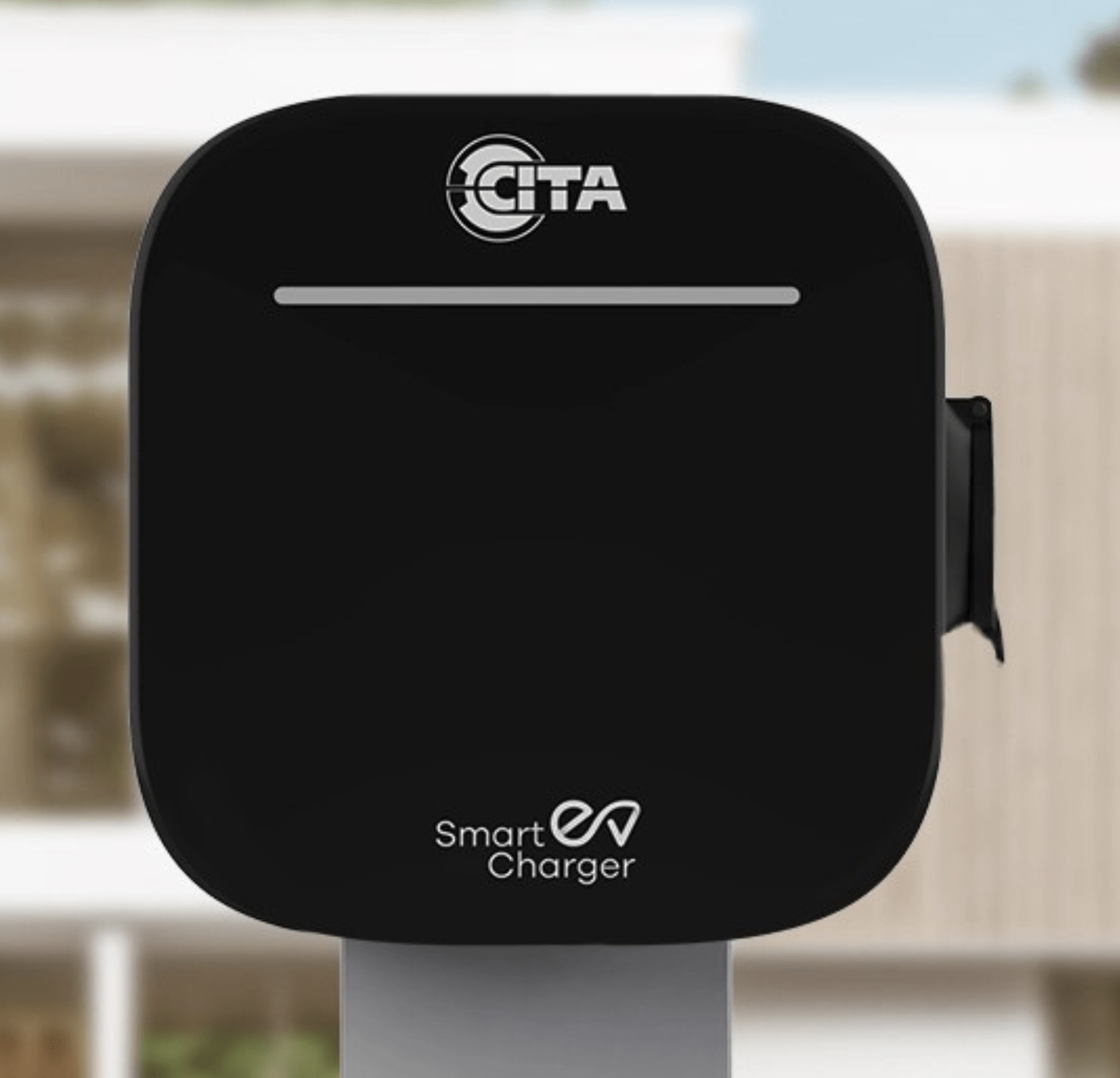

CITA Smart 7 charger is a compact and high-performance home & workplace charging solution. The City Smart charger has a compact housing design is less than 12-inch that operates in an extreme environment such as -30°C ice and snow season or 55°C hot and direct sunshine.
Charging Socket IEC 62196 Type 2, IP54, locking
Charging Mode Mode 3 (IEC 61851-1 / SAE J1772 compliant communication protocol)
6mA DC Trip Integrated
IP Rating IP54
Operating Temperature - 30~ + 50°C
Product Dimension :300mm x 300mm x 130mm
Electrical Specifications
AC Nominal Input/Output
Phases/Lines 1 phase + netural+ PE
Voltage 230VAC+/-10%
Frequency 50Hz
AC Nominal Output
Phases/Lines 1 phase + netural+ PE
Voltage 230VAC+/-10%
Output Power 1.4kW - 7.2kW programmable
Output Current 6 - 32A programmable
Protection
Active Load Management Yes, with external CT clamp (100A max)
Dynamic Load Balancing Yes, via CITA cloud software
Warranty 3-years
Communication
Communication Method WiFi, Optional: 4G/Ethernet
Mobile App Availability Yes, Android and IOS App
Communication Protocol OCPP 1.6 - JSON
