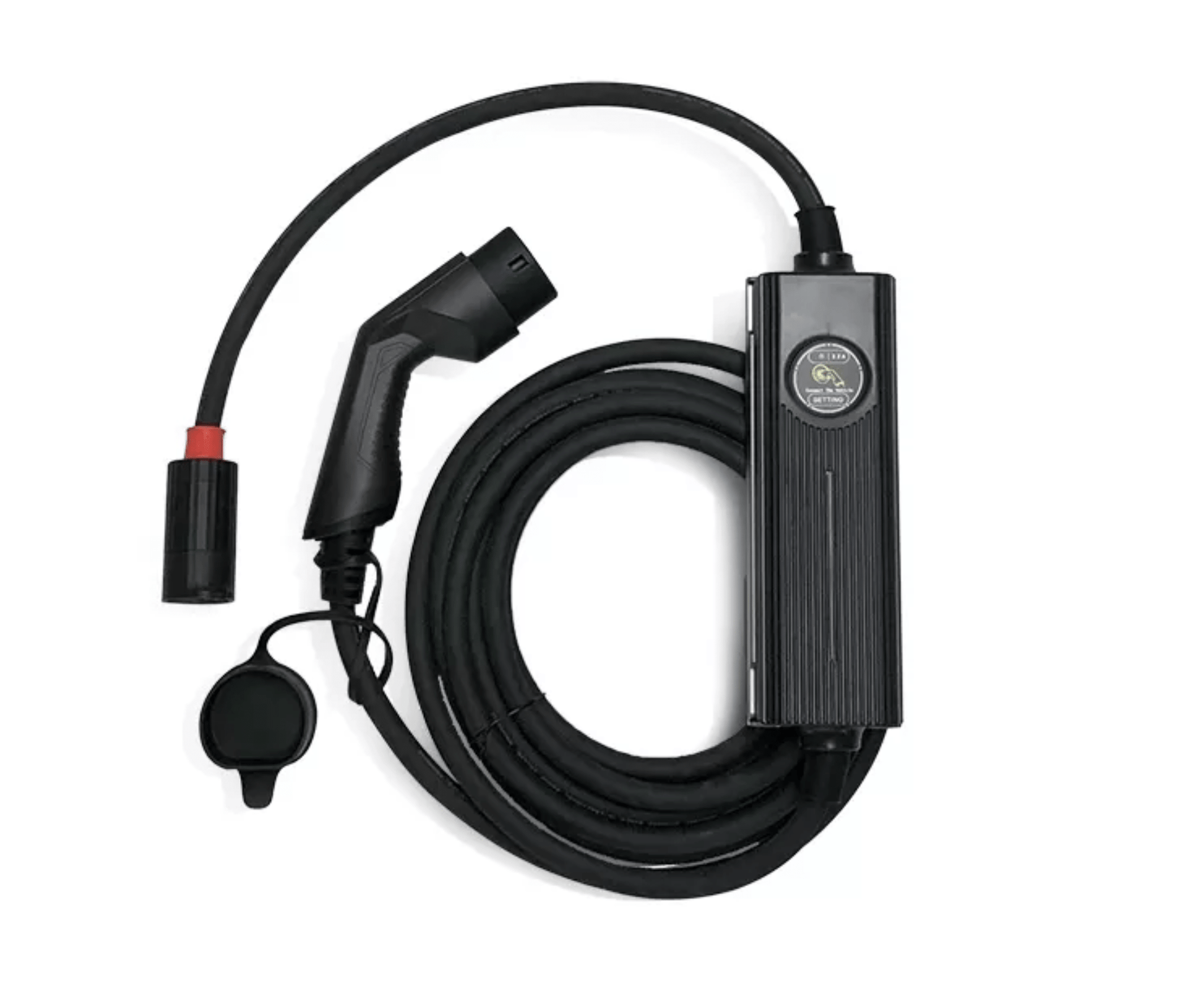

KWIK Portable Type 2 Charger | w/ Adaptable Tails | 16.5 kW

From 8A single phase all the way up to 32A 3 phase unlock every powerpoint in Australia with the portable to rule them all. With automatic plug recognition and advanced touchscreen you can ensure a safe, reliable and secure charge with one portable charger.

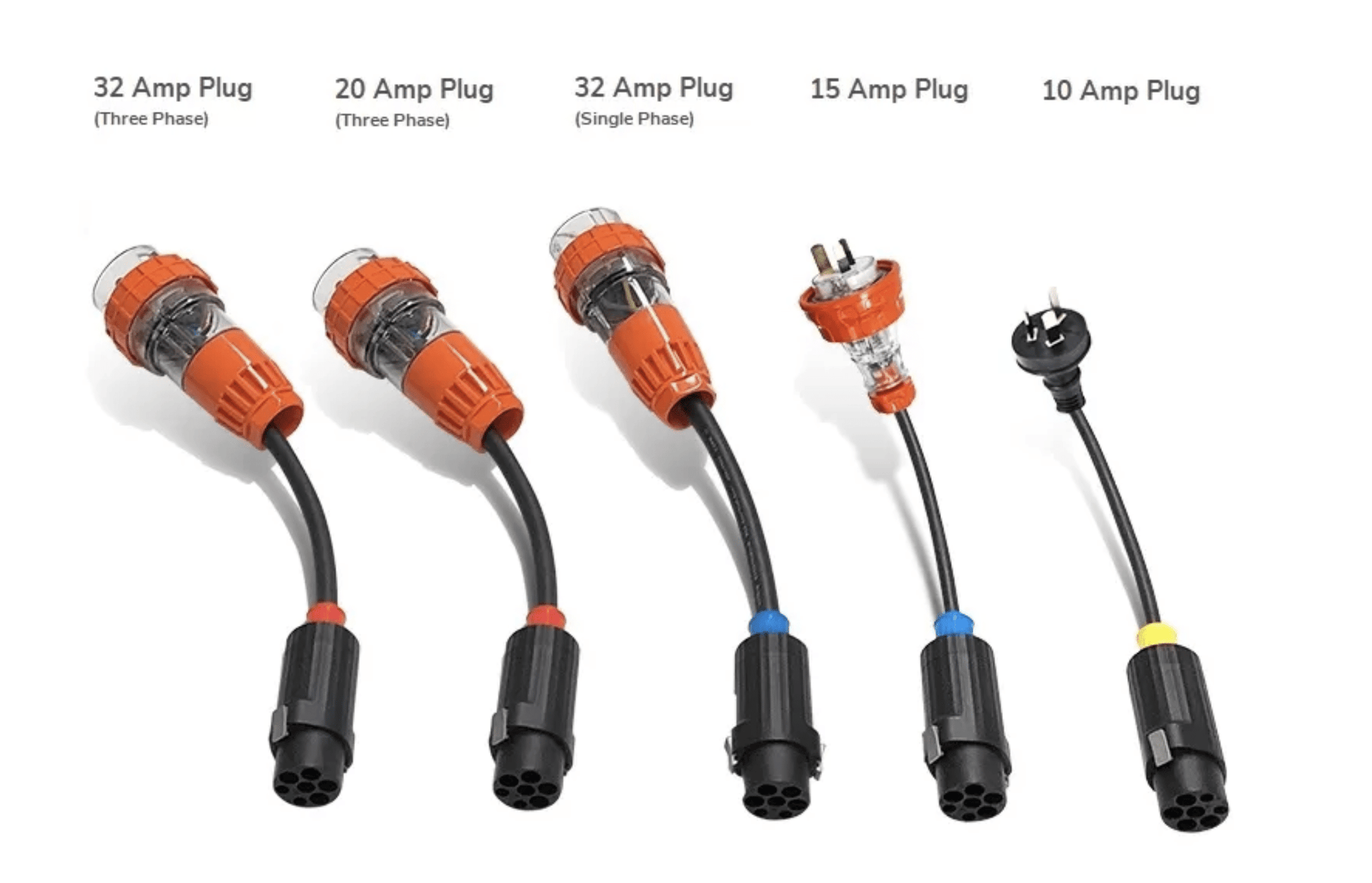

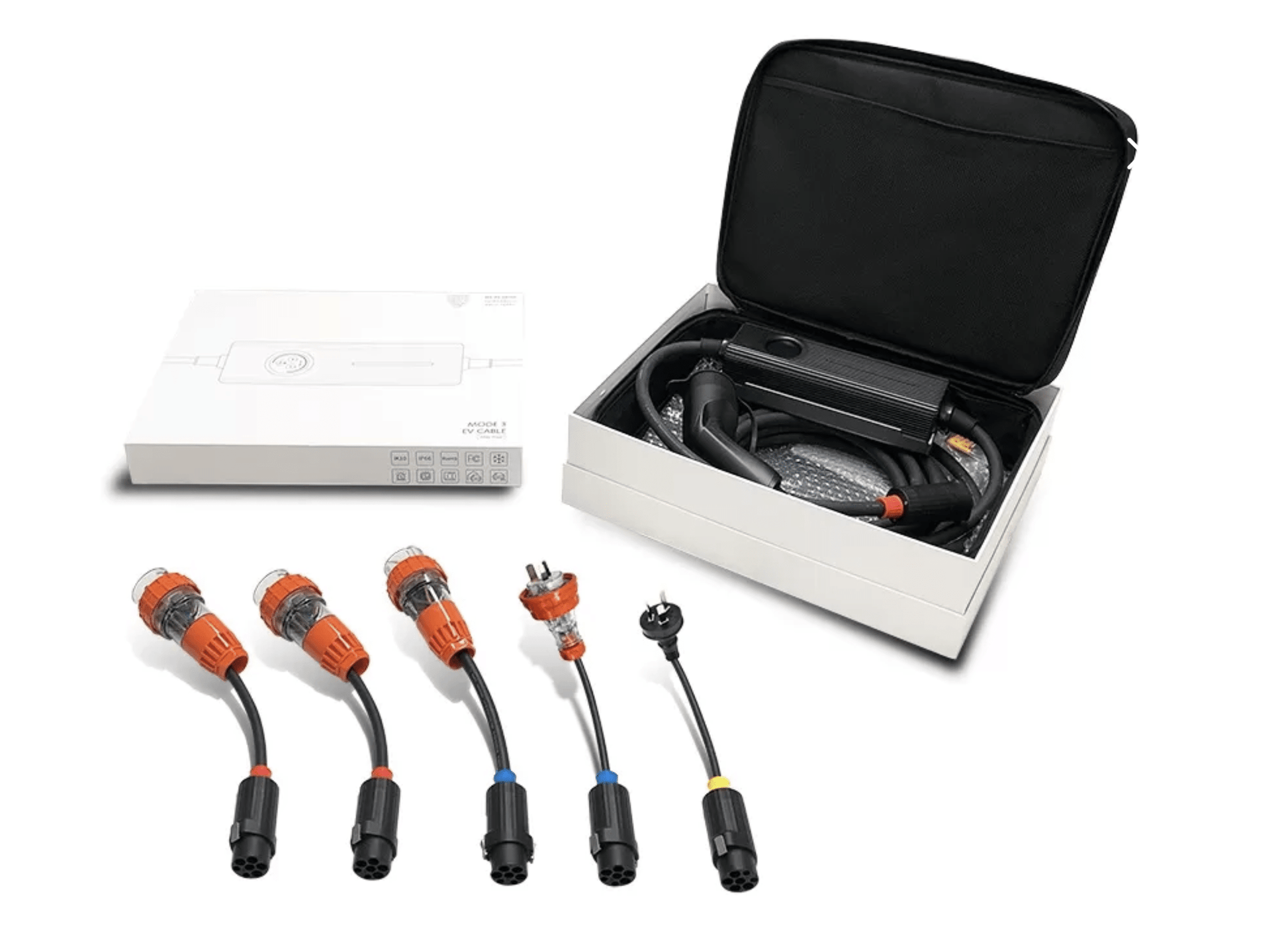

This bundle contains the following:

• Carry case
• 240V 10A connector tail (Single Phase)
• 240V 15A connector tail (single phase)
• 240V 32A connector tail (single phase)
• 415V 20A connector tail (three phase)
• 415V 32A connector tail (three phase)  (Delivers 24 Amp maximum)

KWIK Portable Type 2 Charger | w/ Adaptable Tails | 16.5 kW

ELECTRICAL SPECIFICATION

Input / Output voltage AC 230V/400V

Input/Output Current

• 1*8A – Plugs into 10Amp Outlet
• 1*15A – Plugs in 15Amp outlet
• 1*32A – Plugs into 3-pin Single Phase Outlet
• 3*16A – Plugs into 5-pin 20Amp Outlet
• 3*24A- Plugs into 5-pin 32Amp Outlet

POWER

• 2- 16.5KW
• Operating Frequency 50HZ
• Charging interface type IEC 62196-2
• 300*66*86mm
• 7.5KG

WORKING ENVIRONMENT

• Waterproof Protection Degree IP66
• Maximum Altitude <2000m
• Environment Temperature -25℃ ~ +55℃
• Relative Humidity 5-95% non-condensing
• Standby Power Consumption <8W
• Cooling Natural cooling

PROTECTION

• Over voltage protection
• Under voltage protection
• Over load protection
• Short circuit protection
• Earth leakage protection
• Lightning protection
• Over-temp protection

FUNCTION AND ACCESSORY

• LCD 1.8-inch color display
• RCD Type A / Type A+6mA
• LED Indicator light Blink (040) Rolling(041)
• Intelligent power adjustment Yes

CERTIFICATE

CE, FCC, CCC, ROHS, IK10, IP66
