Ocular DC Charger | 40kW | Dual Charger CCS2
Ocular DC Charger | 40kW | Dual Charger CCS2
Couldn't load pickup availability

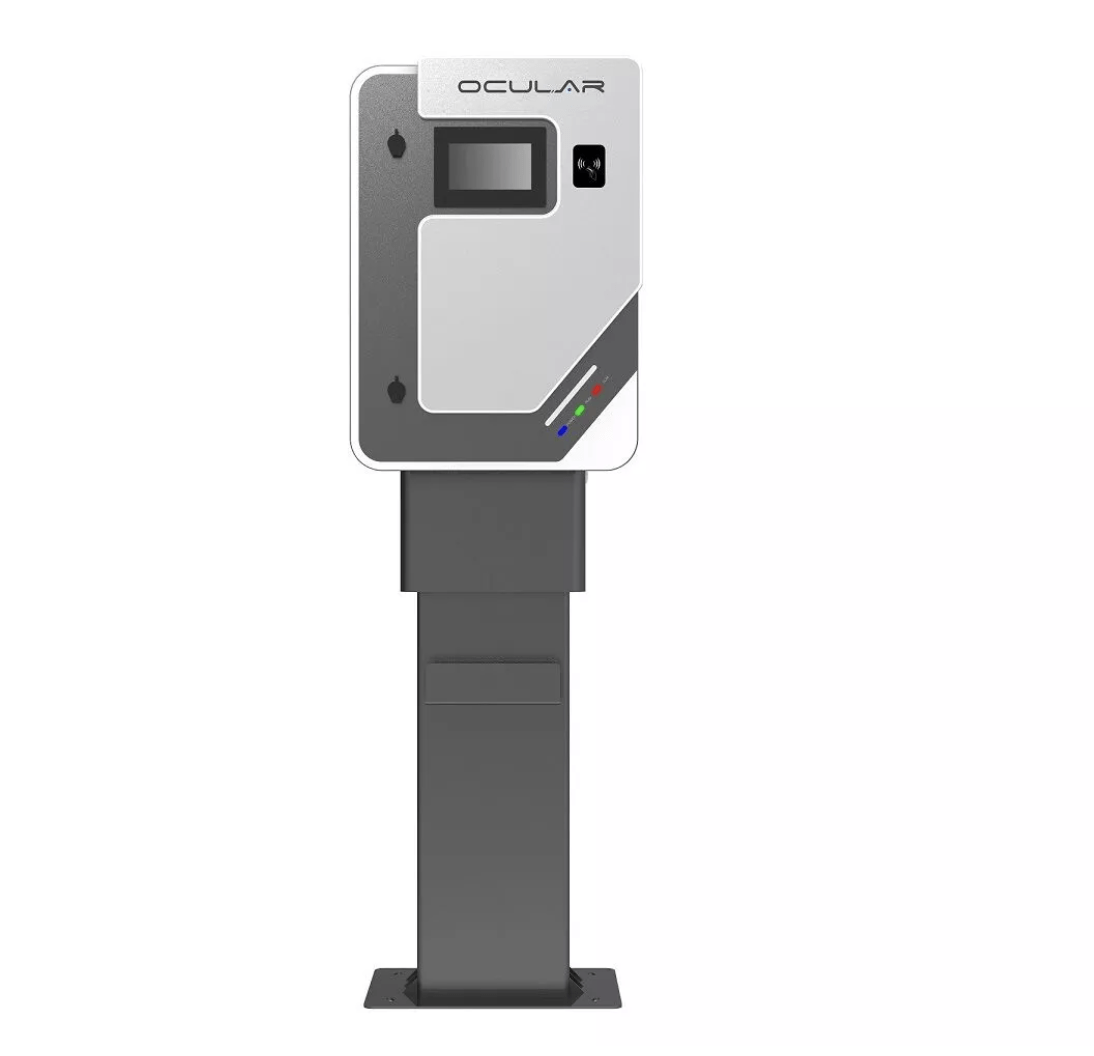

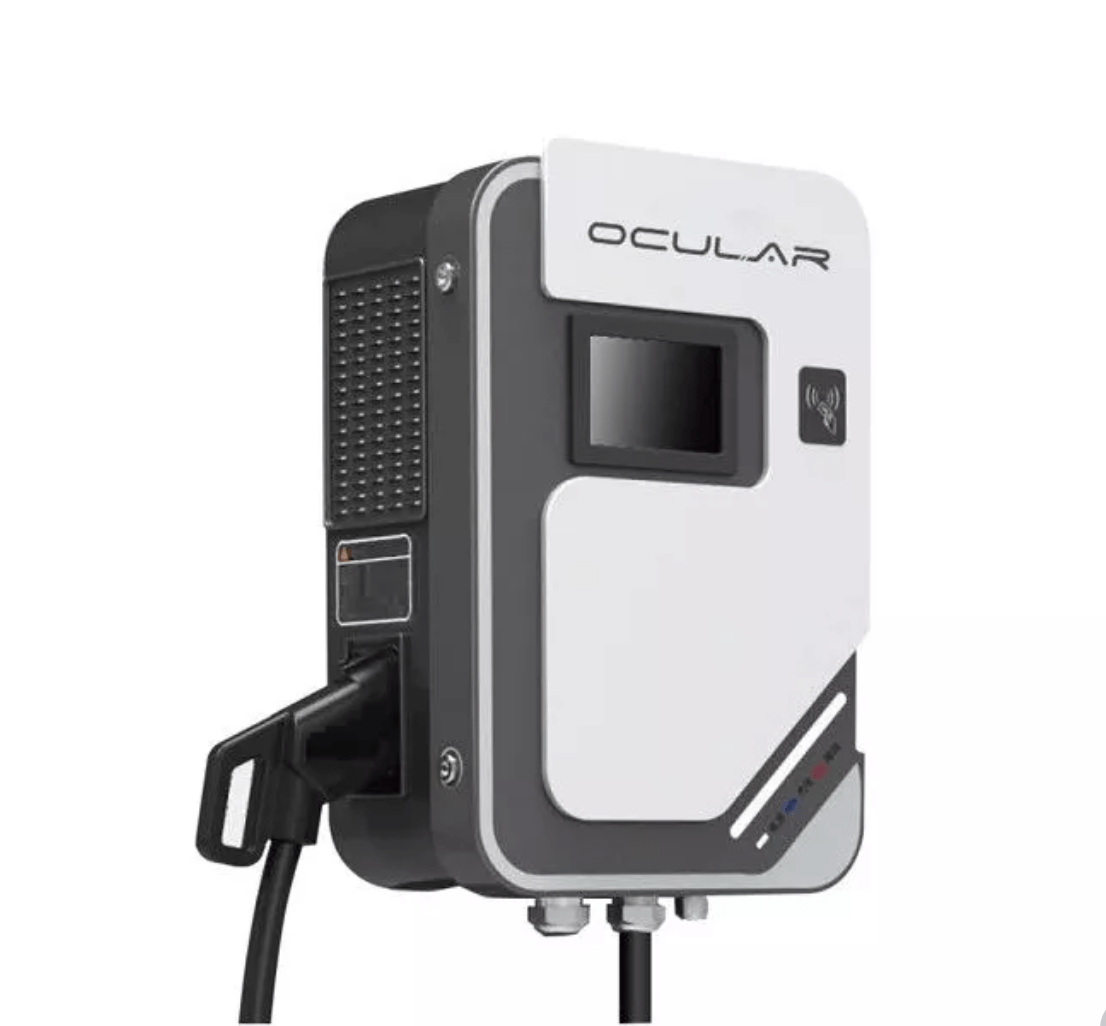

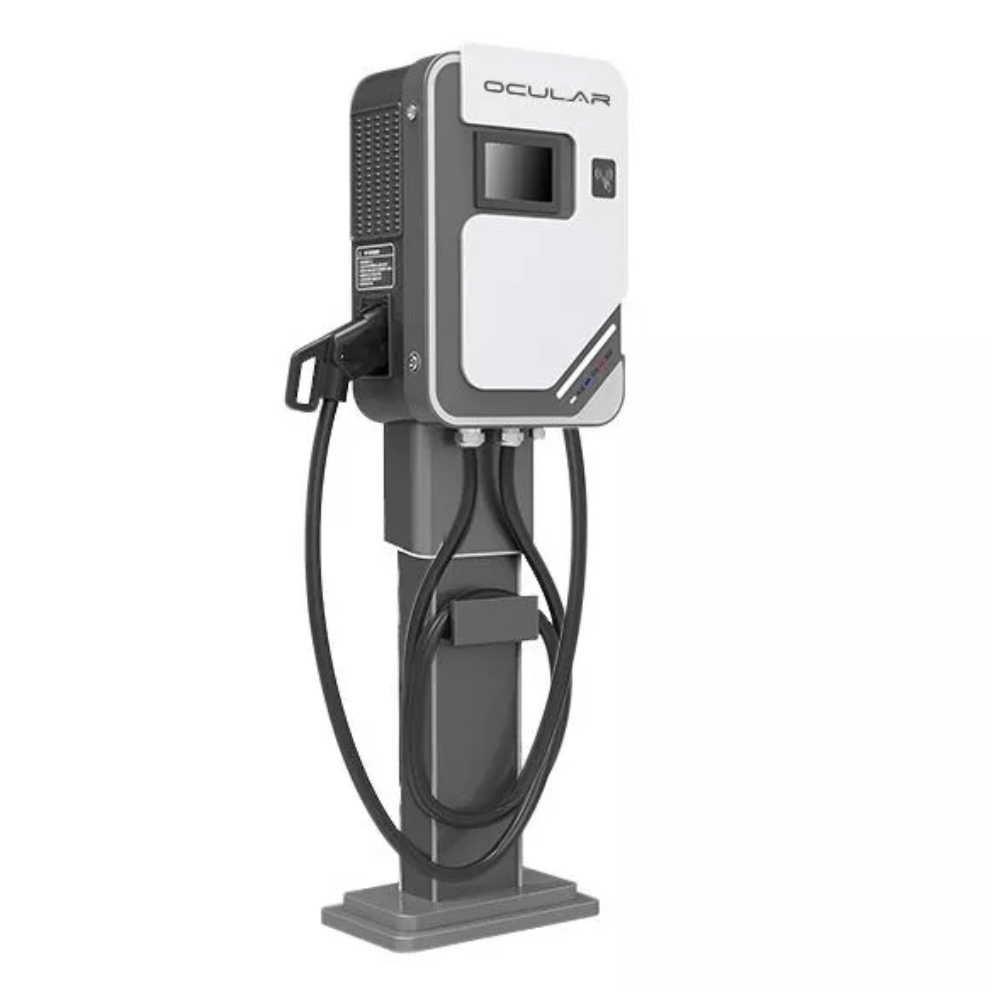

The Ocular DC Dual CCS2 Charger 40kW. The ideal solution for affordable DC charging which is ideally suited for commercial, fleet, and large residential uses.
- Can charge 2x EV’s at once
- Compact Size (90 kg)
- 40 kW single output ( 240km of additional range per hour )
- Easy Installation

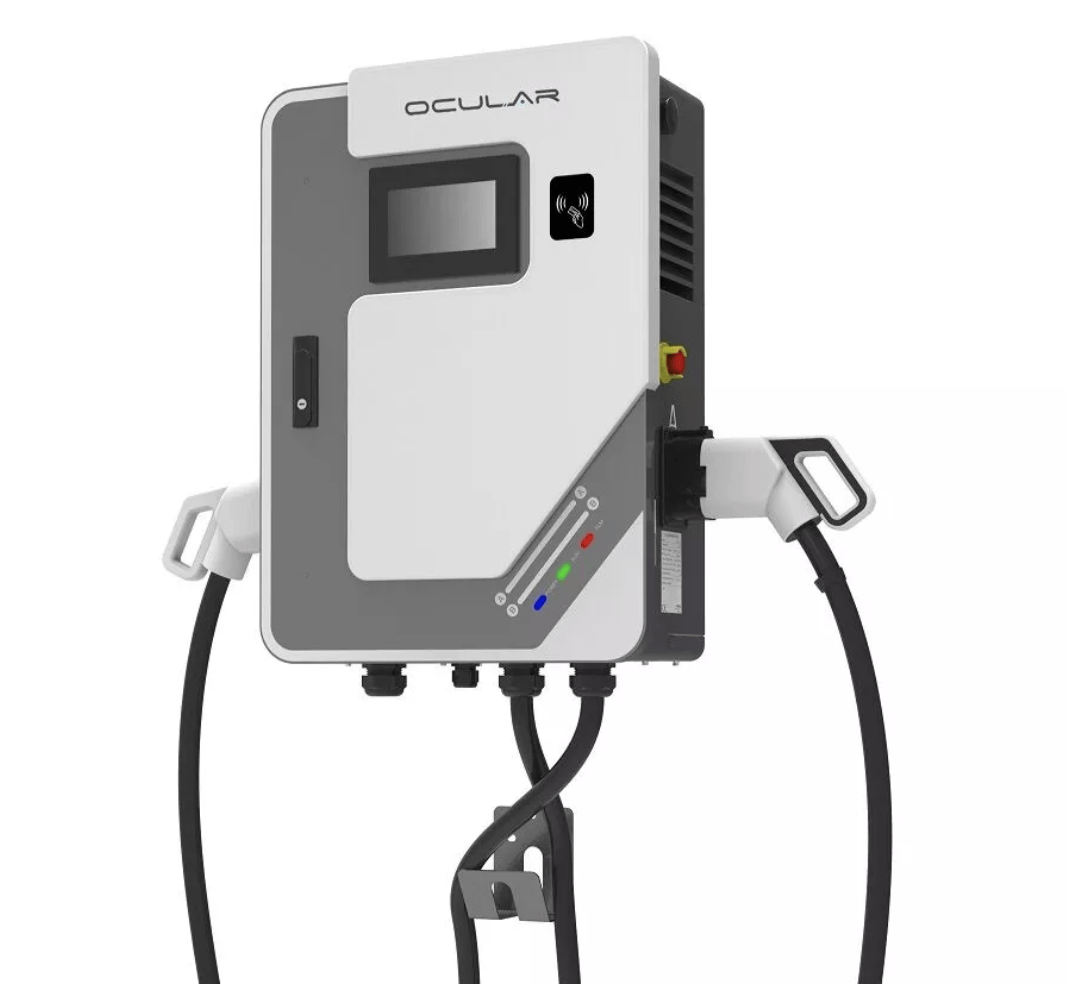

The Ocular Dual DC Wallbox 40kW can fast charge 2 EV’s at once. The unit comes standard with 2x CCS2 Cables designed to charge 1 or 2 EV’s simultaneously.
CCS 2, Fast-charging –
Audi, BMW, Hyundai, Jaguar, KIA, Mercedes EQ, Mini, MG, Polestar, Renault, TESLA, Volkswagen, Volvo, SEA Electric, Volvo Trucks, Daimler Trucks, Hino Truck, BYD Buses
CHAdeMO, the Japanese fast-charging-
Mitsubishi, Nissan
- CCS 2 Dual charging port – Available in single
- Input voltage: 260~530V AC
- Rated input voltage: 400V AC 3-Phase
- Frequency: 50Hz/60Hz
- DC plug type: Dual CCS Type 2 as standard – CHadEMO to order
- Output voltage range: 150~750V DC
- Max. output power: 40kW
- Max. output current: 80A
- Voltage accuracy: <±0.5%
- Current accuracy: ≤±1% (at 20%~100% of rated power)
- Voltage-regulating accuracy: ≤±0.5%
- Current-regulating accuracy: ≤±1%
- Ripple coefficient: RMS: ≤±0.5%; Peak: ≤±1%
- Metering accuracy: 0.5%
- Efficiency: ≥95.2%
- Cable Length: 5m
- RCM Certificate to Australian and European Standards
Protection
- Over voltage protection
- Under voltage protection
- Over load protection
- Leakage current protection
- Overtemperature protection
- Short circuit protection
- Lightning protection
Function & Accessory
- Indicator- Display: 7 inch touch screen
- Emergency stop: Yes
- Payment support: Yes vis OCPP
- RFID/QR
- Ethernet/WIFI/4G Yes
Working Environment
- Operating temperature: -20°C ~+50°
- Relative humidity: 5%-95% non-condensing
- Maximum altitude: 2000m
- Cooling: Forced air cooling
- Standby power consumption:<25W
- Noise emission: ≤65db
- Protection degree: IP54
Mechanical
- Dimension (W/H/D)- 548/775/294mm
- Weight- 90KG
Please note charging speed is also dependent on the vehicle- The unit delivers 80Amp maximum x Voltage of the vehicle. If the vehicle can charge at a voltage above 500V it will be 40kW. If below 500V it will charge at a rate slower than 40kW.
