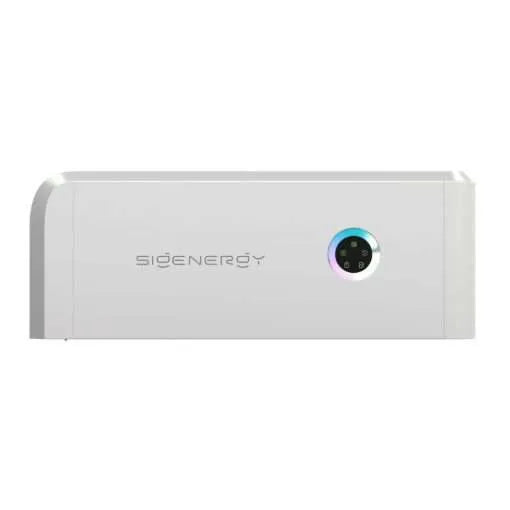

Sigenergy 10.0kW SigenStor Three Phase Controller
Sigenergy 10.0kW SigenStor Three Phase Controller
Couldn't load pickup availability
Sigenergy 10.0kW SigenStor Three Phase Controller
A smart, flexible controller designed to manage your three-phase solar and battery system with ease. It helps you maximise energy efficiency, supports high loads, and keeps your home or business powered up reliably — all in one sleek unit.
Sigenergy 10.0kW SigenStor Three Phase Controller
The Sigenergy 10.0 kW SigenStor Three Phase Controller is a fully-integrated, AI-enabled energy management inverter designed for three-phase solar-plus-storage systems. It combines solar conversion, bidirectional battery power conversion, EV DC charging interface, battery pack communication, and an embedded Energy Management System (EMS) into a single IP66-rated enclosure. With support for on-grid/off-grid operation, multi-source black-start, and DC ground-fault protection, it delivers reliable, high-efficiency performance for residential and light-commercial installations.
Key Features
-
5-in-1 Modular Design
Integrates solar inverter, EV DC charger interface, battery PCS, battery pack interface, and EMS for a complete home-energy solution in one unit -
10 kW Continuous Three-Phase Output
Provides up to 10 000 W of three-phase AC power for self-consumption or backup, with a 150 % peak boost capability in off-grid mode -
Four MPPT Trackers
Four independent maximum power point trackers maximize solar harvesting under shading or complex array layouts -
Multi-Source Black-Start
Automatically orchestrates batteries, PV arrays, and generators to re-energize critical loads without grid power -
DC Ground-Fault Protection
Built-in detection and isolation eliminate the need for external leak-protection devices, ensuring compliance and safety -
On-Grid & Off-Grid Compatibility
Seamlessly switches between grid-tied operation and off-grid backup with zero-millisecond transfer for uninterrupted power -
IP66-Rated Enclosure
Fully dust-tight and resistant to powerful water jets, suitable for indoor or outdoor installation -
AI-Optimized EMS
The embedded EMS uses AI-driven algorithms to optimize charge/discharge cycles, peak shaving, and time-of-use strategies via the mySigen app
Technical Specifications
Parameter
|
Specification
|
---|---|
Rated AC Power
|
10 000 W continuous
|
Peak AC Power (5 min)
|
11 000 W
|
MPPT Trackers
|
4 independent channels
|
DC Input Voltage Range
|
160 V – 1 100 V
|
Max. DC Input Power
|
16 000 W
|
DC/AC Ratio
|
Up to 1.6:1
|
Efficiency (Max.)
|
97.5 %
|
Protection Rating
|
IP66
|
Weight
|
~36 kg
|
Dimensions (W × H × D)
|
700 × 300 × 260 mm
|
Operating Temperature
|
–30 °C to +60 °C
|
Warranty
|
10 years
|
Installation & Scalability
-
Modular Stacking: Supports up to six Sigenergy BAT modules (5 kWh or 8 kWh each) in parallel per tower for scalable storage capacity
-
Parallel Expansion: Multiple three-phase units can be paralleled for larger commercial systems or connected in three-phase arrays
-
Quick-Connect Interfaces: MC4-compatible PV terminals and color-coded battery connectors reduce wiring errors and commissioning time
Safety & Compliance
-
Comprehensive Protections: Over-voltage, under-voltage, over-current, short-circuit, and over-temperature safeguards protect equipment and users
-
CEC Listed: Certified for Australian grid-connected installations in the 5 – 29.9 kW three-phase range when paired with compatible Sigenergy batteries
-
mySigen App Integration: Real-time dashboards, AI-driven optimization suggestions, customizable peak-shaving schedules, and over-the-air firmware upgrades
-
Local and Remote Alerts: Instant notifications for system events, performance metrics, and maintenance alerts via mobile or web portal
Warranty & Support
-
10-Year Manufacturer Warranty: Covers defects in materials and workmanship under normal operating conditions
-
Nationwide Service Network: Access to certified Sigenergy installers and spare-parts availability across Australia.
With its robust three-phase design, comprehensive safety features, and AI-optimized management, the Sigenergy 10.0 kW SigenStor Three Phase Controller delivers a turnkey, future-ready energy solution for homes and businesses seeking reliable self-consumption, backup power, and grid services.
