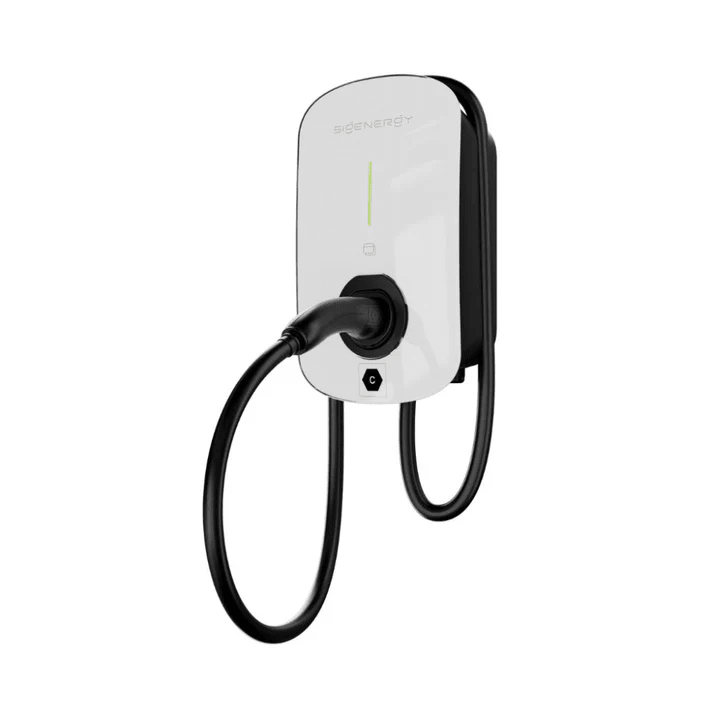

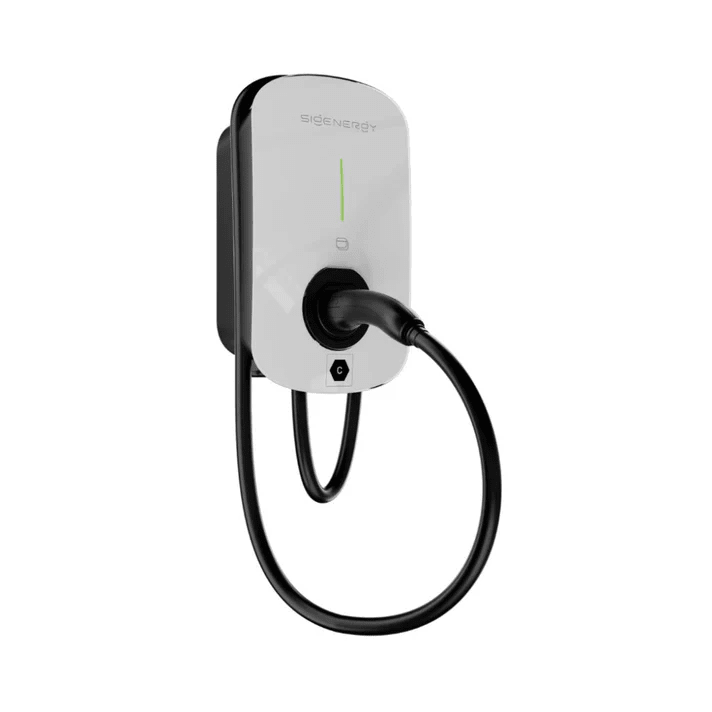

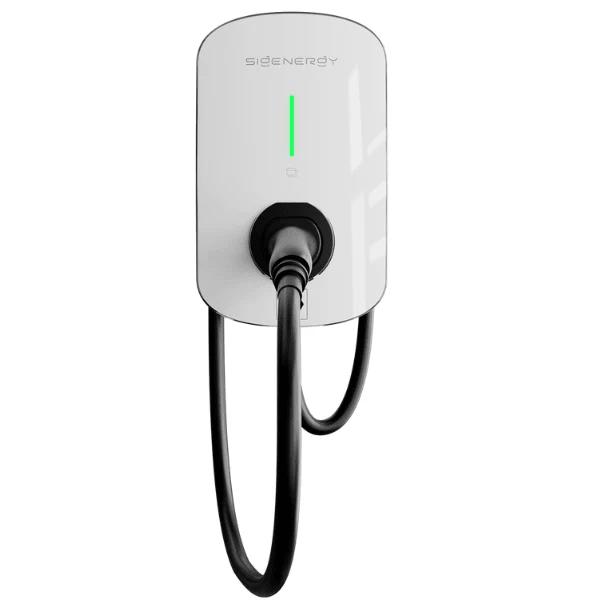

Sigenergy 7-22kW AC EV Charger 4G Type 2 (With Charging Cable)

The Sigenergy EV AC Charger with an included tethered charging cable is a smart and sustainable EV charger, perfect for modern homes and energy systems.

Designed for Australian EV drivers the Sigenergy AC EV charger easily integrates with the Sigenergy ecosystem and provides safe, reliable charging at home, work including outdoors.

Can be simply installed by your licensed electrician, or an accredited Solar installer.

Main Features:

Smart App Control with mySigen. Monitor energy use, set charging schedules, and manage load dynamically - all from the palm of your hand. The mySigen app gives you full visibility and control over your EV charging, anytime, anywhere.

Dynamic Load Management = No More Overloads. Thanks to intelligent load balancing, the Sigen EV AC Charger prevents grid overloads automatically. Your home’s electrical system stays protected, and your EV charges safely—even during peak times.

Eco-Friendly Charging Powered by Your Solar System. Pair it with the Sigenergy home energy solution and tap into green power effortlessly. Whether it's 100% PV charging, solar boost, or fast charging, you're in full control of how your EV gets charged—while saving money and reducing your carbon footprint.

Easy Installation, Flexible Mounting. Enjoy quick installation with fewer steps and multiple cable entry points (rear*, top or bottom). Its wall-mounted, IP65-rated design makes it ideal for both indoor garages and outdoor environments.

We also have Untethered units available providing flexibility in cable lengths and prevention of cable theft in high visibility areas.

Built-in Safety Meets Lower Installation Costs. With integrated DC and AC fault detection and residual current protection, there's no need for costly external protection devices. Safety is built in - right out of the box.

OCPP Compatibility for Broader Access. Whether you're using RFID cards, app-based authentication, or auto-charge features, the Sigen EV AC Charger supports OCPP 1.6J ED 2, ensuring compatibility with a wide range of networked EV charging platforms.

Quick Specs:

• Power Options: 7kW / 11kW / 22kW

• Input Voltage:
  7kW: 220–240V (Single-phase)
  11kW & 22kW: 220–240V / 380–415V (Three-phase)

• Output Current: 6–32A

• Connector Type: Type 2

• 5m charging cable length - this is the factory-fitted cable that extends from the unit.
• Charging Modes:
  100% Solar
  Solar Boost
  Fast Charging

• Communication: 4G / Wi-Fi / Ethernet, RS485 (Modbus RTU)

• Smart Control: mySigen App, RFID, Auto-Charge

• Dynamic Load Management: Supported

• Protection Features:
  AC & DC fault detection
  Over/under voltage protection
  Over-temperature protection
  Surge protection
  PEN and ground fault protection

• Ingress Protection: IP65 (indoor/outdoor use)

• Operating Temperature: -30°C to +55°C

• Mounting Method: Wall-mounted

• Dimensions: 234 × 384 × 126 mm

• Weight: 4.5 – 6.4 kg

• Standards Compliance: IEC 61851, IEC 62955, EN standards

• OCPP Compatibility: OCPP 1.6J Edition 2

Installation Guide Video:

*Please note currently only 7kW models support rear wiring unless otherwise advised.
New incoming stock when available, will support rear wiring.

About The Brand:

Sigenergy is a forward-thinking company focusing on developing cutting-edge home and business energy solutions, including energy storage systems, solar inverters, and EV chargers. Our world-class R&D team of hundreds of industry talents shares the vision of making the world greener through continuous innovation.

We build next-generation energy products with optimum safety features by integrating the latest power electronics, digital, and AI technologies. With global sales and services, we aim to become our customers' most trusted partners on their journey to a more sustainable future.
