Sinexcel SEC DC 40-240kW Integrated Fast DC Charger

Sinexcel SEC DC 40-240kW Integrated Fast DC Charger

$45,000.00 AUD
$45,000.00 AUD $45,000.00 AUD
Sale Sold out
Shipping calculated at checkout.

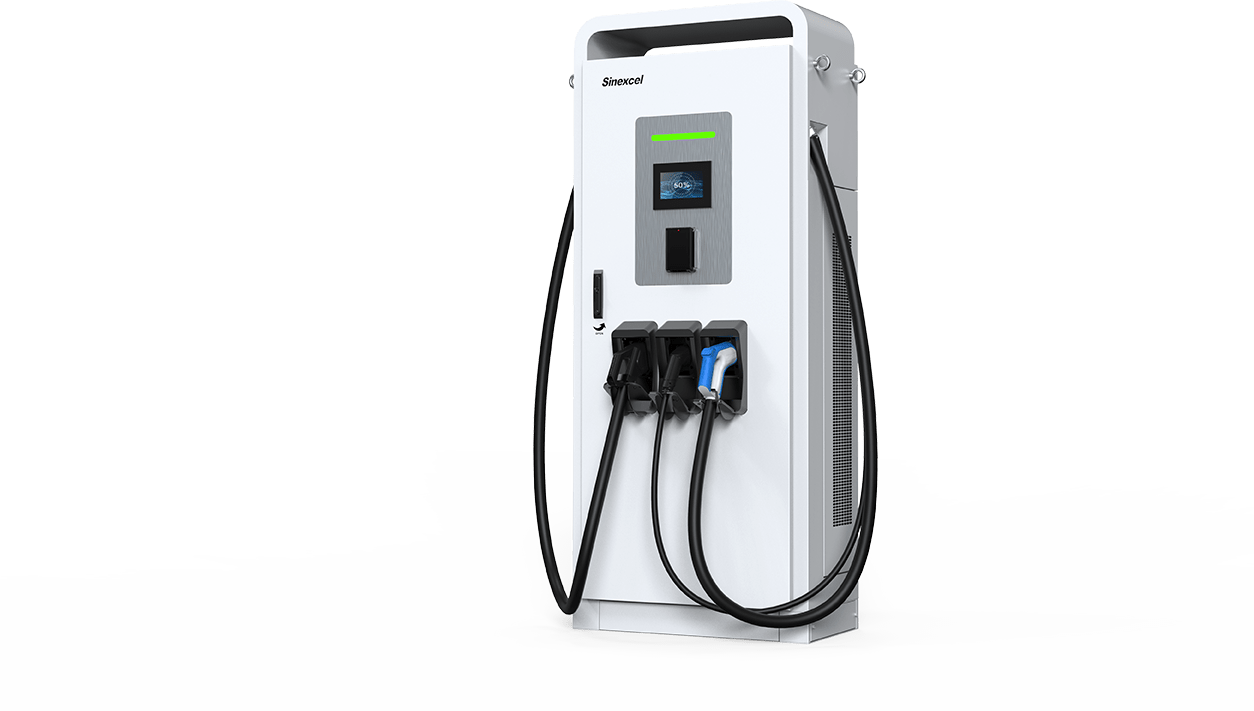

Sinexcel SEC 80kW charger is equipped with 2 DC charging connectors, which supports the output at a maximum of 1000V and 80kW full power.
In order to charge for more EVs at the same time, a additional Type 2 connector with 22kW is optional to realise this purpose.
It is suitable to various charging scenarios and also meet most of EVs’ charging needs in the market.

INSTALL MAXIMUM CHARGING SPOTS WITH THE LOWEST INVESTMENT

Charging Scenarios:

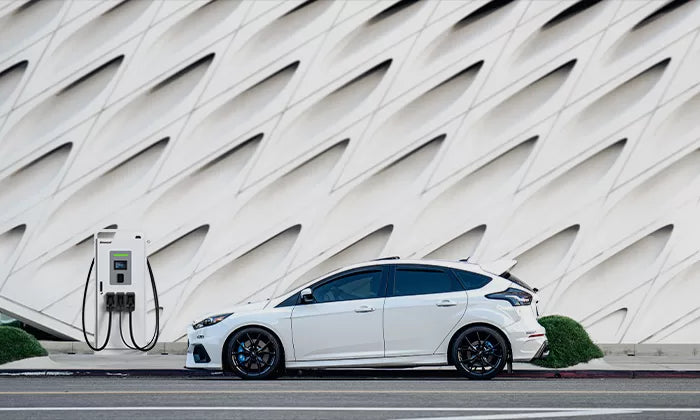

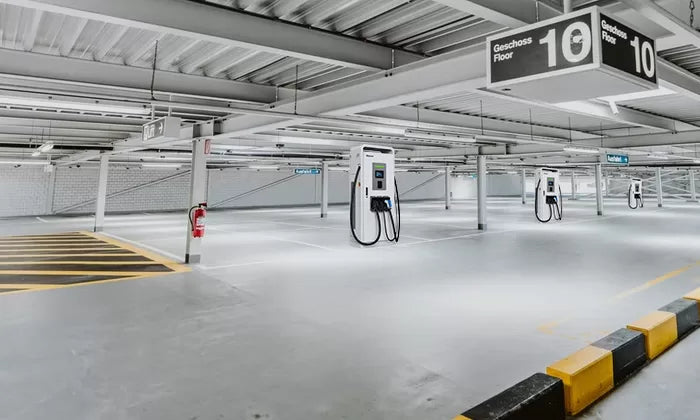

  • Destination charging such as shopping, workplaces, malls, tourist attractions, etc. For a few hours stay on the journey or on the work.
  • Be compatible with limited capacity grid which can not support high power charge points, 40-80kW charger can suit that grids and meet most charging needs.
  • Support fast return on the investment. The SEC 80kW integrated charger can cover 3 parking spots and increase utilization of charging assets under the same distribution system. It provides maximum revenue opportunity by 3 charging connectors on 1 EVSE.

Contact Us To Find Out More

Please contact us for full comprehensive pricing.

ULTRA WIDE OUTPUT VOLTAGE & HIGH EFFICIENCY

40-80kW  FLEXIBLE CONFIGURATION FOR DC CHARGING

Support 80kW output power at maximum, to provide faster charging rate and promote user experience.

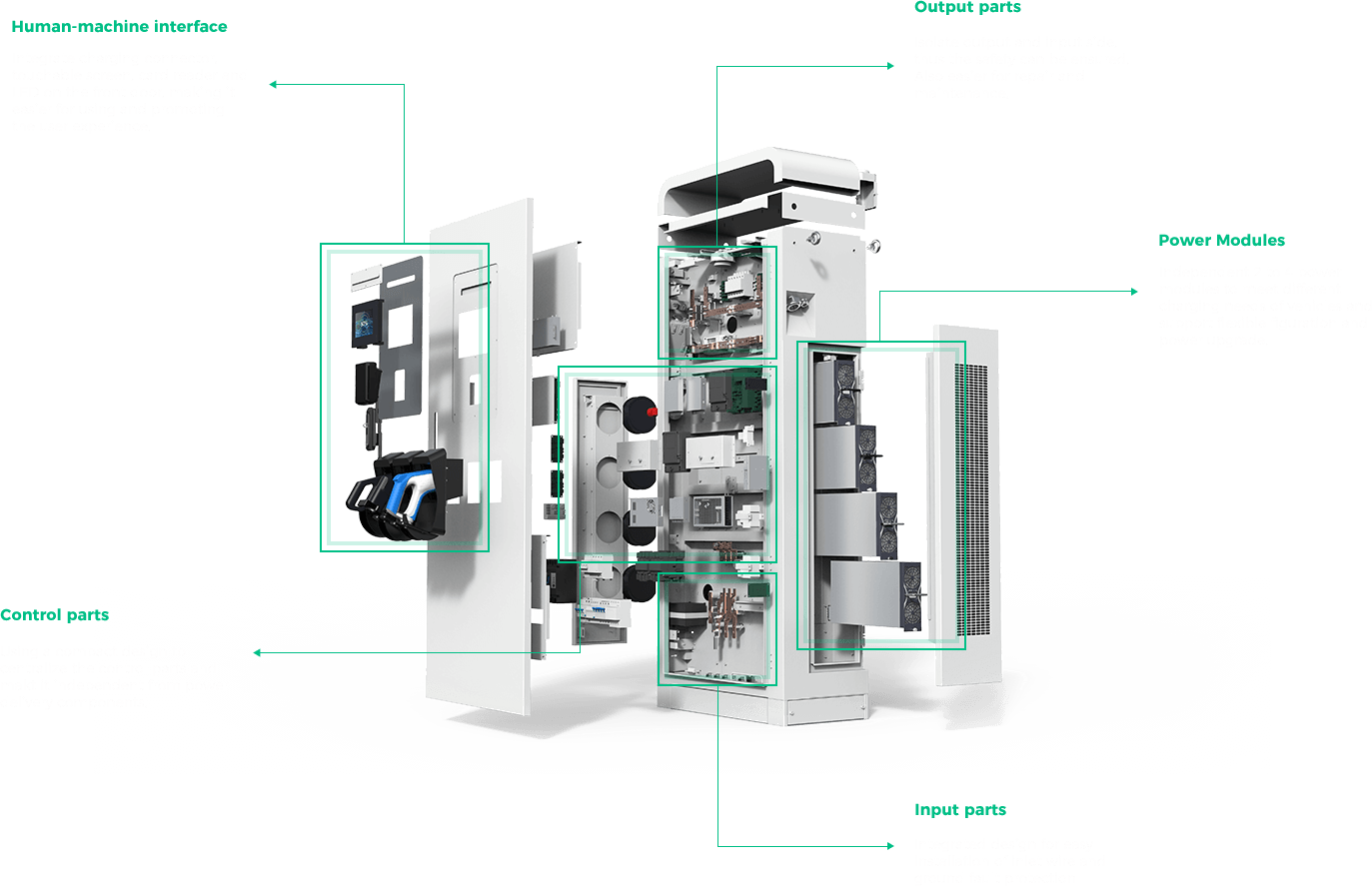

Due to the modular design of the charging system, SEC 80kW can charge simultaneously, and the whole charging power can be separated equally to each connector, making the power configuration more flexible.

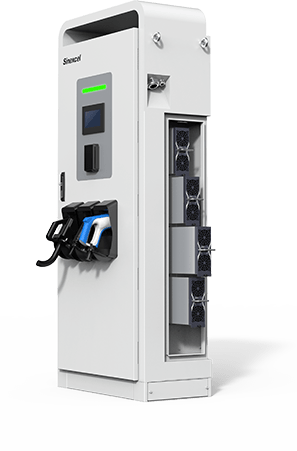

Equipped with Sinexcel 20kW power module, providing high efficiency and power utilization of DC charging.40-80kW flexible configuration with customization and it is easy to upgrade by adding power modules.

MAKE FULL USE OF CHARGING  POWER TO SHORTEN THE CHARGING TIME

Power allocation: 80kW DC charging+22kW AC Charging

The charger can provide up to 80kW power to 1 vehicle or up to 40kW power to charge 2 vehicles simultaneously, and the power of
AC charging is fixed as 22kW.

Operate at 80kW can charge up to 80% SOC to a 60kWh capacity EV within 30 minutes

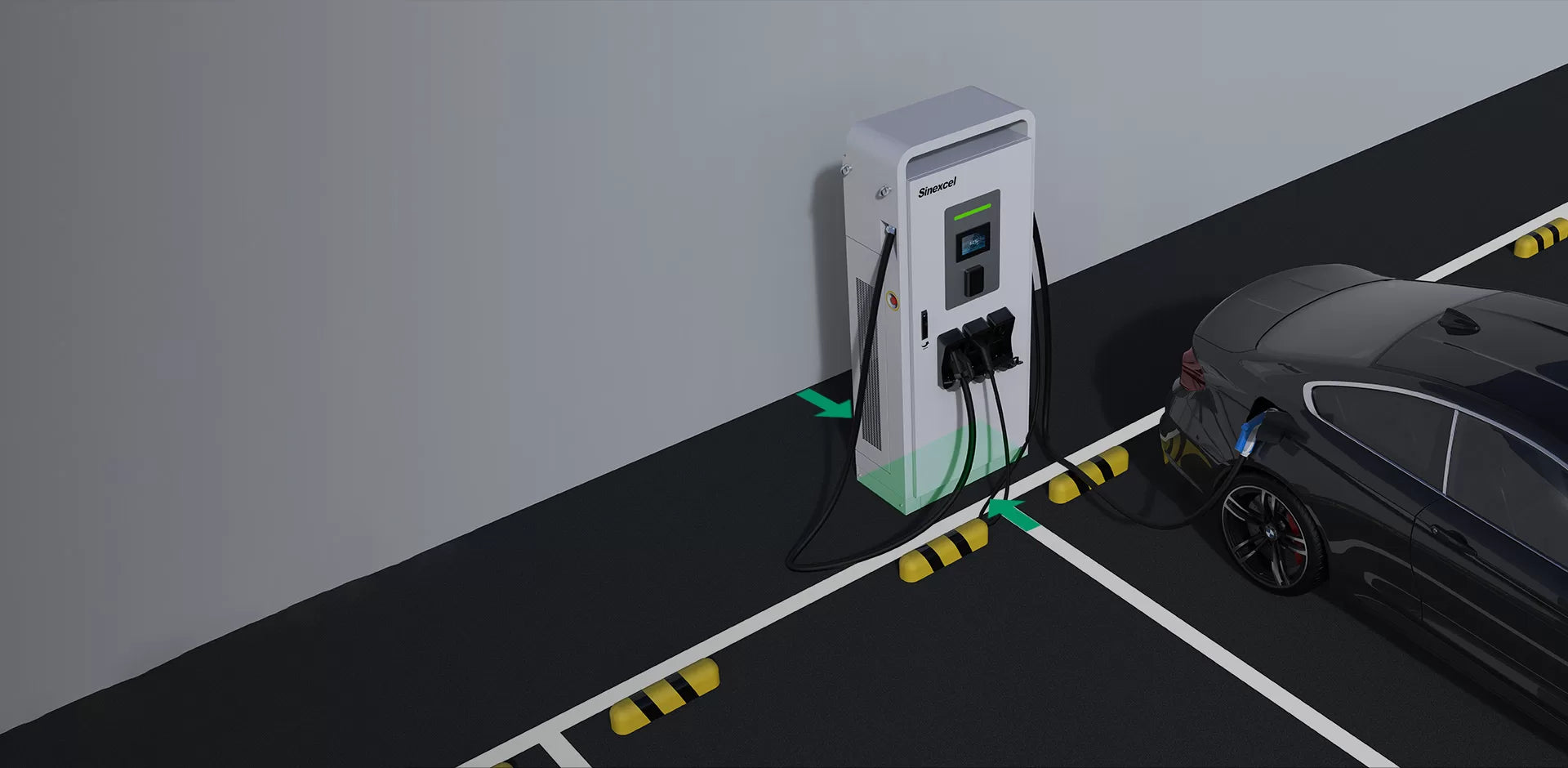

COMPACT  EASY INSTALLATION AND CONVENIENT MAINTENANCE

  • It has the smallest footprint with the compact appearance which can be flexible with any location and suited to limited available space
  • Effortless and easy installation to save construction cost and enable quick return on the investment
  • Thanks to the integrated and function modular design, it is convenient to access and maintenance.

Datasheet

View full details
