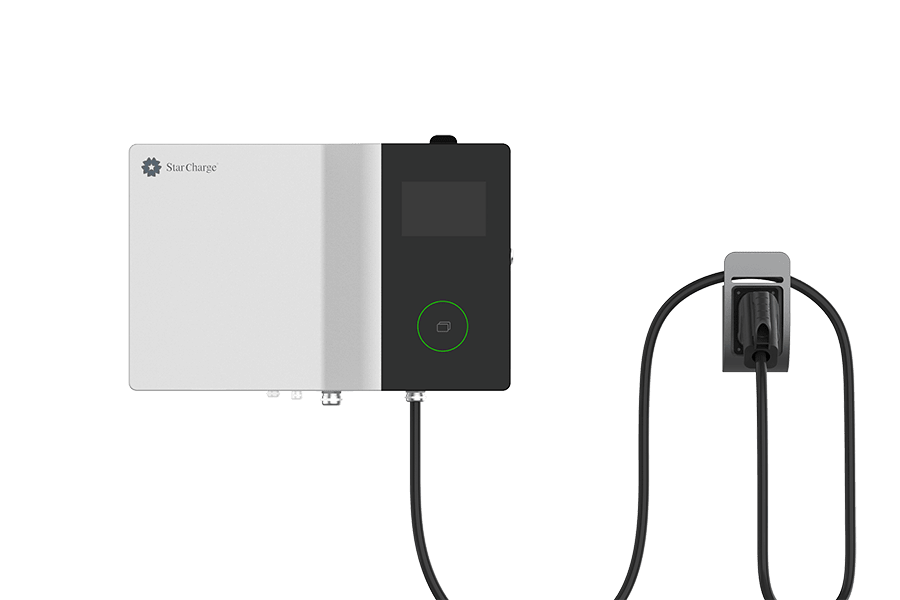

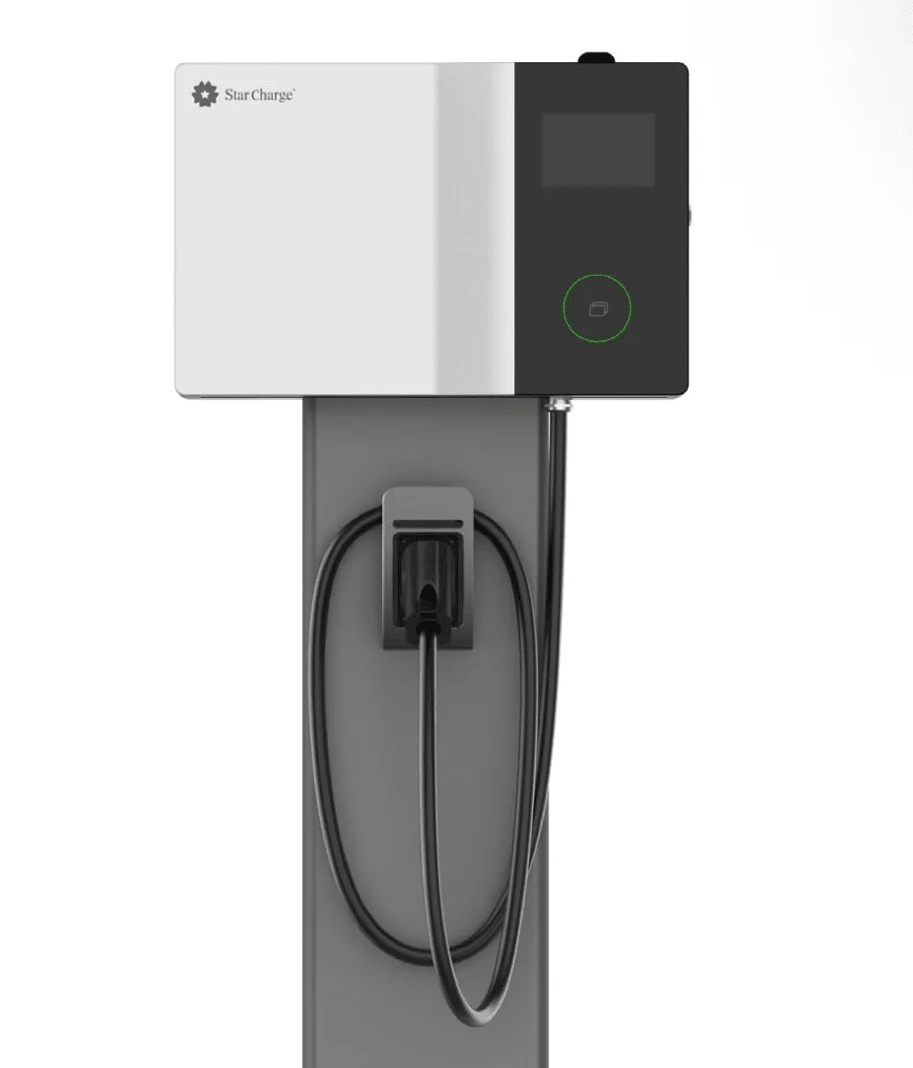

Starcharge – Venus 30KW DC Charger
Starcharge – Venus 30KW DC Charger
Couldn't load pickup availability
Venus. DC Charger, 30kW. Venus delivers high performance with 95% efficiency and an 80A output. Its user-friendly 7-inch touch screen allows easy monitoring of charging status
Venus delivers high performance with 95% efficiency and an 80A output. Its user-friendly 7-inch touch screen allows easy monitoring of charging status. Multiple layers of electrical protection ensure safe operation. Its compact design and flexible wall/pole mounting options suit fleet, workplace, and space-sensitive sites. Venus is compatible with 99% of mainstream EVs.
Bidirectional Power Flow
- 7.4kW charging and discharging capability, enabling V2G (Vehicle-to-Grid) functionality with peak efficiency of 95.5%
Smart Communication
- Multiple connectivity options (4G/WiFi/Bluetooth) with advanced EV protocols support (DIN 70121/ISO 15118-2/ISO 15118-20/IEC 61851-24), enabling intelligent power management.
Robust Environmental Design
- Operates in extreme temperatures (-22°F to 122°F) with separate air duct cooling system, low noise (<55dB).
Solution
-
Public Charging Station
-
Destination Charging
-
Fleet Charging
Venus

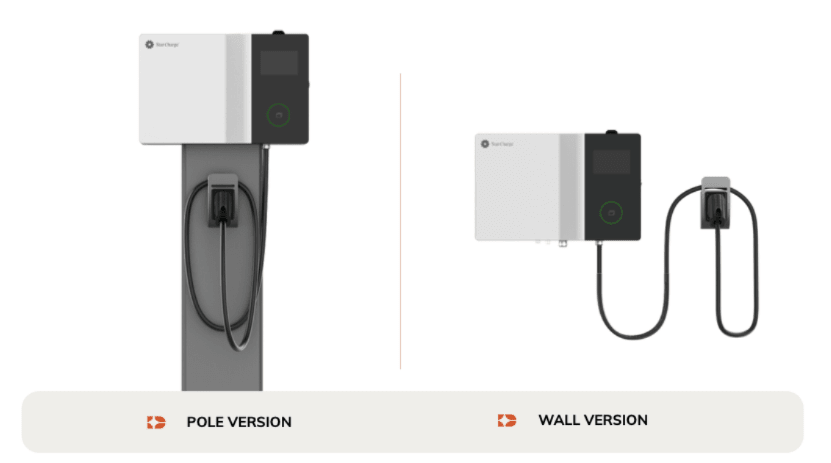

High Performance and Safe Charging with Flexible Mounting Options for
Efficient Operation Across Diverse Environments.
Specifications
Specifications are subject to change without notice.
Input Rating
400Vac±10%, 3 phases, 50/60Hz, L1+L2+L3+N+PE
Input Current Rating
AC 50A
Power Factor
≥0.98 @ Full Load
Efficiency
95%
Grid Type
TN-S, TN-C, TN-C-S, TT
Output Interface
1 x CCS2
Output Power
30kW max.
Output Voltage
200-1000Vdc
Output Current
100A max.
Protocol (EVSE&Backend)
OCPP 1.6J
Protocol (EVSE&EV)
DIN 70121, ISO 15118ax.
IP Rating
IP55
IK Rating
IK10 (Screen is IK08)
Cooling
Forced Air
Charging Cable Length
5m
Dimensions (WxHxD)
680*440*280mm （Pole: 330*1272*200mm)
Weight
Approx. 35kg (excluding power modules)
Certification
CE-RED, CB, UKCA, RCM, WPC, NTC, NBTC, SDPPI9ongoing), SIRIM(ongoing)
