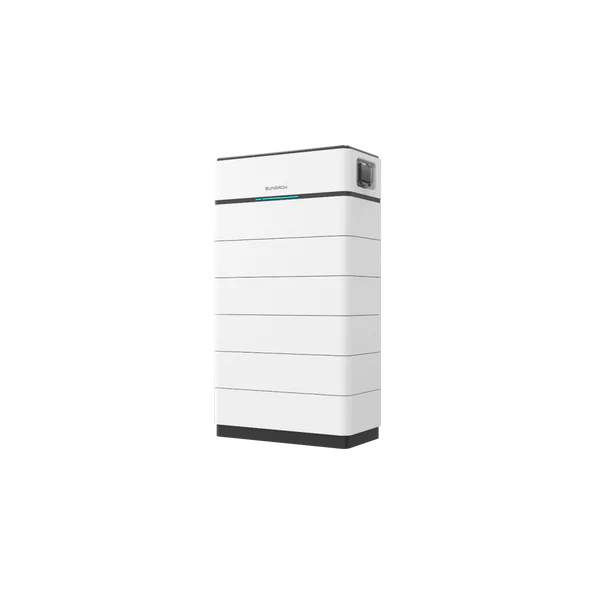

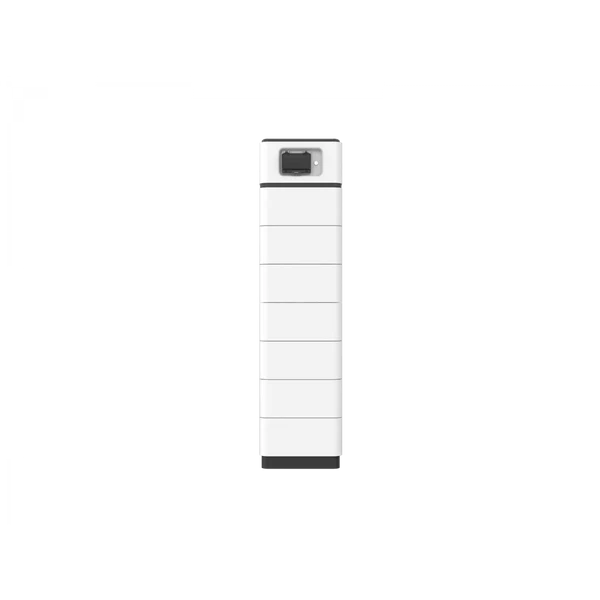

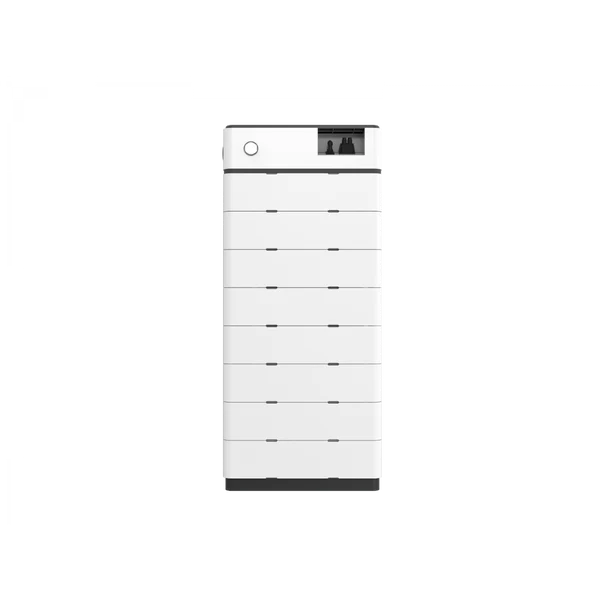

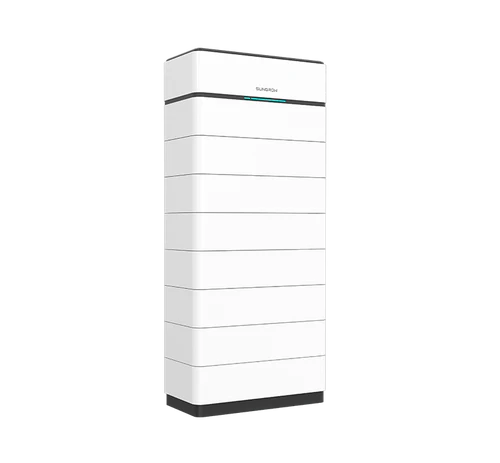

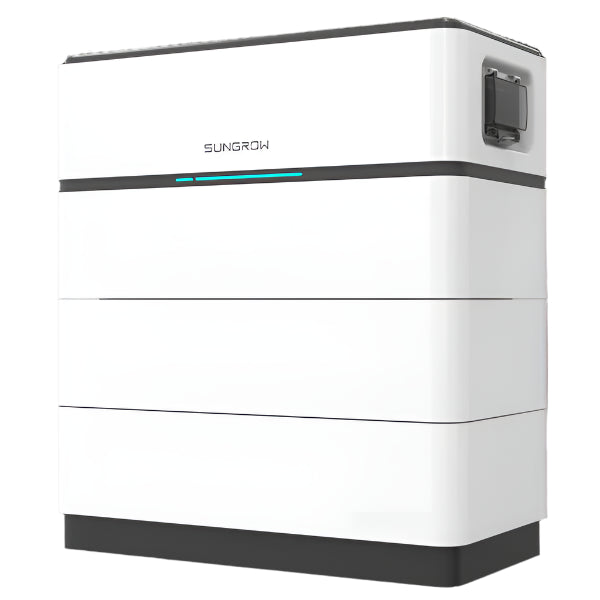

Sungrow SBH High Voltage LFP Battery System

The SBH series Battery by Sungrow, now a benchmark for outstanding design, features a modular stacking system with each module providing 5kWh of capacity.

With scalability up to 160kWh, meeting diverse energy needs the Sungrow SBH high-voltage system enables efficient cycling and supports a 0.7C discharge rate, ensuring quick response for off-grid backup power and virtual power plant (VPP) applications.

Sungrow, a global leader in PV inverters and energy storage systems, has won the prestigious 2024 Red Dot Design Award for its innovative SBH100-400 battery series. This accolade recognises the SBH series for its exceptional design, reliability and durability, seamlessly blending aesthetics and functionality to set new standards in energy storage.

A standout feature is its plug-and-play installation, which simplifies expansion and replacement without tools and allows for single-person operation. The sleek, modern design integrates advanced technology with a warm aesthetic, enhanced by subtle lighting, making it a natural fit for contemporary homes. Strategically engineered to optimise user experience for residential and commercial customers, the SBH100-400 series offers robust protection, broad compatibility, and an efficient, user-friendly energy storage solution, empowering more people to embrace clean energy for their homes and businesses.

High power capacity with 100% usable energy
Lithium iron phosphate battery for enhanced safety
Expandable design for flexible capacity range
High voltage battery
IP55 rated for indoor and outdoor use
Easy plug-and-play installation
YouTube Video Thumbnail
Reliability and Performance

Powered by lithium iron phosphate (LiFePO4) technology, the SBH Battery System combines safety, durability, and performance. It supports a continuous charge and discharge current of up to 50A and provides a maximum power output of 28kW when fully expanded. To ensure reliable operation, the battery incorporates multiple safety mechanisms, including:

Over-voltage and under-voltage protection: Shields against harmful voltage fluctuations.
Over-current protection: Prevents excessive current flow that could damage the system.
Over-temperature and under-temperature protection: Maintains safe operation within a defined temperature range.
DC fuse: Adds extra protection by guarding against short circuits.
Easy Installation and Monitoring

The SBH Battery System is designed with convenience in mind, featuring a plug-and-play setup that eliminates the need for cables between modules. The stackable, modular design allows for simple installation by a single person in most regions. On the AC side, the hybrid inverter terminals use a snap-on mechanism, further simplifying setup. Natural convection cooling ensures efficient thermal management, while Sungrow’s iSolarCloud platform enables real-time monitoring, energy flow tracking, and self-consumption insights.

Flexibility and Expandability

With an expandable capacity ranging from 10kWh to 40kWh, the SBH Battery System adapts to growing energy demands, making it ideal for both new installations and system upgrades. Its compatibility with a wide range of inverters further enhances its versatility.

Additional Information

The SBH High Voltage LFP Battery System Battery represents Sungrow’s next generation of residential energy storage solutions, emphasizing safety, flexibility, and high performance. It is certified to meet international standards, including CE, CEC, IEC 62619, and VDE 2510-50, and comes with a 10-year warranty, offering users confidence in its quality and long-term reliability.

Technical Specifications And Comparison Table:

Components in Every Sungrow SBH High Voltage LFP Battery System:

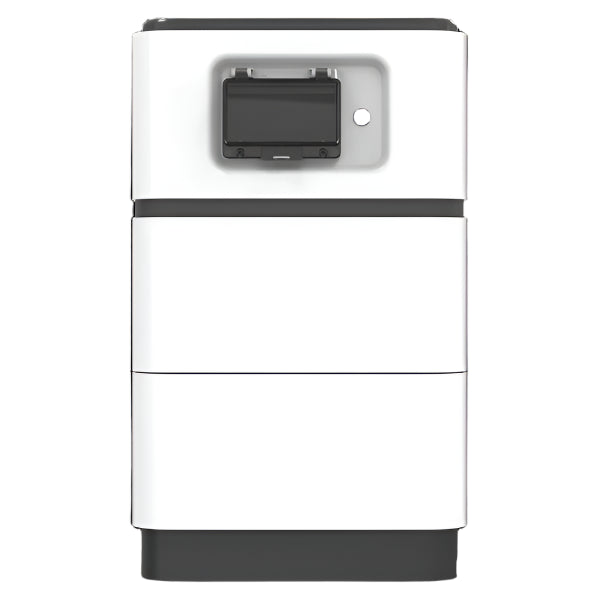

Each Battery System (stack) is composed of a top cover, switch gear module, Battery Modules and a base.

SBH High Voltage LFP Battery System Installation

About The Brand:

Sungrow, a global leader in renewable energy technology, has pioneered sustainable power solutions for over 27 years. As of June 2024, Sungrow has installed 605 GW of power electronic converters worldwide. Sungrow Australia office has been established in Sydney since 2012. With this rapid development, Sungrow Australia has built one of the largest solar inverter manufacturer teams in Australia covering sales, technical support, projects and after-sales service. The Sales team and technical support team are based in North Sydney and Sungrow warehouse is located in Pendle Hills. With over 6 years of local support experience, we have built national service networks and our service contractors are ready to help installers or customers with warranty enquiries.

Datasheet

Includes:

5kw Hybrid Inverter

Select Battery Size

Extra 5kwh module = $850 ea

Extra Inverter Size:

Single Phase

6kw: $350

8kw: $850 4 mppt

10kw: $1300 4 mppt

Three Phase

5kw: $1400

10kw: $1900

15kw: $2600

20kw: $3400

25kw: $4600

Extras:

Long AC run: $300 for 10M

3 Phase: $200

Switchboard Upgrade: $250 – $3000

HIGH POWER

Up to 50A continuous charge and discharge current

Max.power exceeding 25kW

SAFETY

Lithium Iron Phosphate (LFP) Cell

Refined battery management.

FLEXIBILITY

Extendable as needs

Support 2-8 modules per unit, max.4 units in parallel(160kWh)

EASY INSTALLATION

Stackable & Modular design

Plug and play, no cable between battery modules

Technical Specifications by Model

Model Usable Energy Nominal Voltage Weight
SBH200 20kWh 281.6V 196kg
SBH250 25kWh 352.0V 241kg
SBH300 30kWh 422.4V 286kg
SBH350 35kWh 492.8V 331kg
SBH400 40kWh 563.2V 376kg
Depth of Discharge: 100% (settable)
Operating Temperature: Charging: 0°C–50°C | Discharging: -20°C–50°C
Protection Rating: IP55
Communication: CAN bus interface
Installation: Floor-mounted, suitable for indoor and outdoor environments

Who Is This Bundle For?

The Sungrow SBH High Voltage Battery Bundle is perfect for:
Homeowners seeking energy independence with backup power during outages.
Businesses aiming to optimize energy use and reduce operational costs.
Solar energy systems that require reliable and scalable energy storage.
