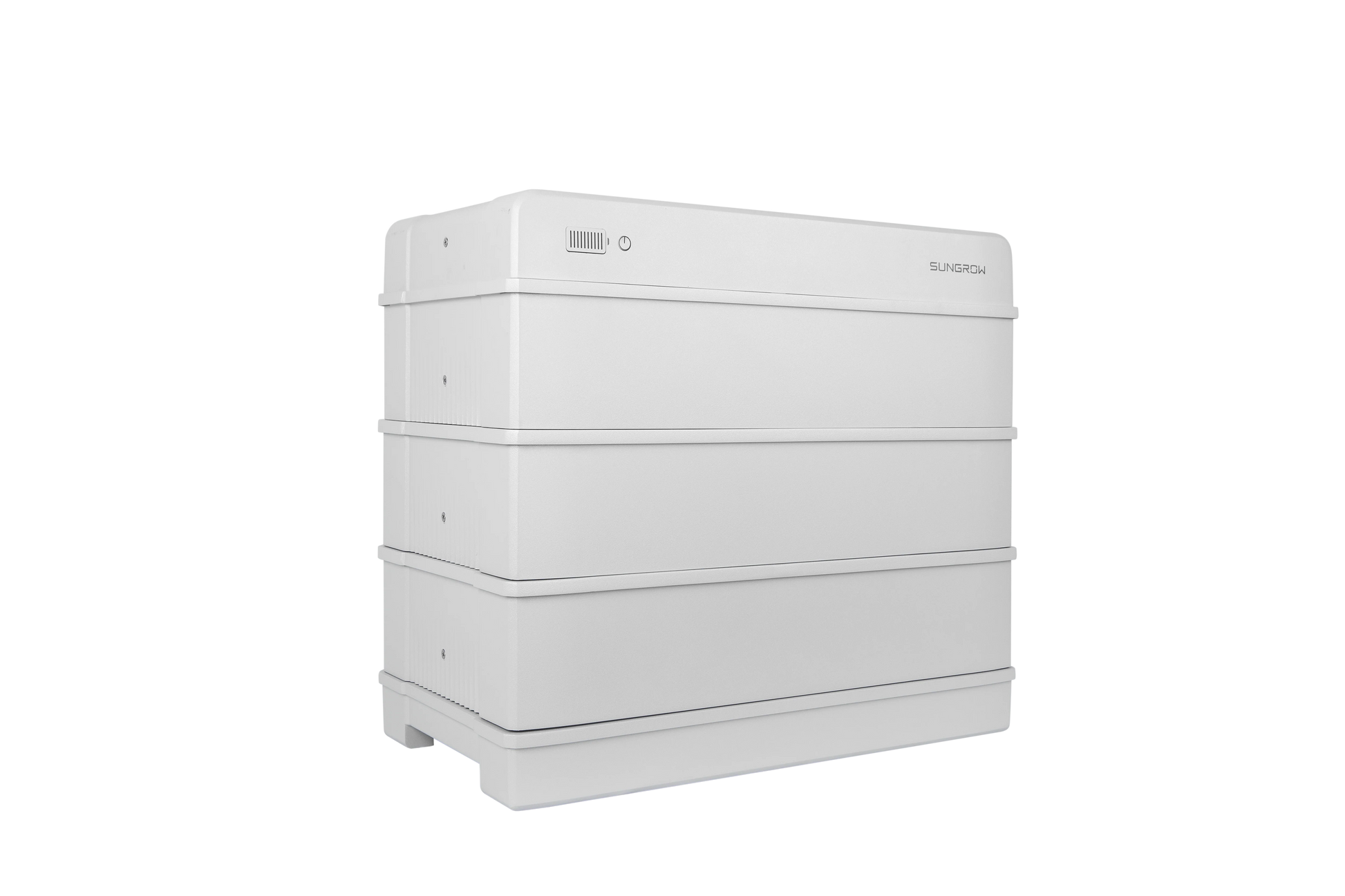

Sungrow SBR High Voltage LFP Solar Battery System 9.6 KW – Sungrow SBR 9.6kWh High Voltage LFP Solar Battery (SBR096)

Sungrow SBR High Voltage LFP Battery System is modular, compact in size, and designed for direct use. It offers flexible capacity ranging from 6.4kWh to 102.4kWh.

With the option to parallel up to four SBR units, users can achieve a total capacity of up to 32 modules, each offering 3.2 kWh of storage. This modular design enables customisable energy storage solutions for residential and small commercial needs.

Through the Sungrow app, users have access to all essential information regarding their solar panel energy production and stored energy management. Both the inverter and the battery can be initialised with a single click, enabling automatic commissioning and real-time yield management.

Main Features:

Modular Design: Easy to install and expand with additional battery packs to fit your needs.

Lightweight Modules: Each module weighs only 32kg, making them easy to handle during installation. Built-in DC Isolator: Ensures safety during installation and maintenance.

Simple Connection: Plug-and-play connections for easy setup. 6.4kWh or 9.6kWh Capacity: The modular design allows you to customize the battery capacity to fit your needs, even comply with rebate requirements like Queensland’s 6.4kWh limit (achieved with a dummy module).

Strong Support Network: Sungrow boasts a large support team in Australia with extended hours to assist installers. Total Solution: Sungrow offers a combined inverter and battery system, simplifying troubleshooting and warranty claims.

This is a great option for homeowners considering the SRO battery for their solar energy system, particularly those in Queensland looking to maximise their solar rebates.

Technical Specifications And Comparison Table:

Components in Every Sungrow SBR High Voltage LFP Battery System:

Each Battery System (Rack) is composed of a top cover, a switch gear, PACKs (Battery Modules) and a base.

Sungrow SBR High Voltage LFP Battery System Commissioning and Configuration:

Click Here To View Sungrow SBR064 System Configuration

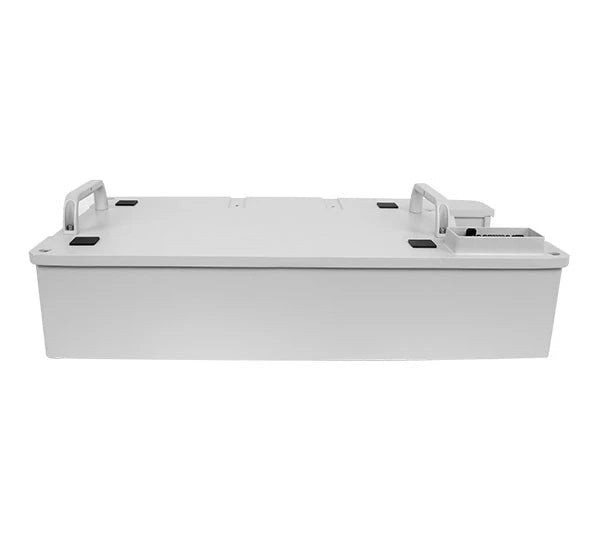

Sungrow SBR096 9.6kWh High Voltage Solar Battery Module LiFePO Technology (10-Year Warranty)
Experience top-tier energy storage performance with the Sungrow SBR096, a 9.6kWh high-voltage LiFePO battery module designed for residential and small commercial solar systems. Built with safe and durable lithium iron phosphate cells, the SBR battery supports modular expansion and integrates seamlessly with Sungrow hybrid inverters.
Ideal for both new installations and retrofits, the SBR096 allows you to optimize your solar usage, reduce grid dependence, and enjoy reliable power backup during outages.

Key Features:
9.6kWh Usable Capacity Modular battery built using 3 × 3.2kWh packs
High Voltage (HV) Battery Designed for efficient energy transfer
LiFePO Chemistry Long cycle life, thermal stability & non-toxic
Smart BMS & Monitoring Real-time performance tracking and protections
Expandable System Scale from 9.6kWh up to 25.6kWh (max 4 modules)
Perfect for Residential Backup & Storage
Compact & Stackable Design Easy installation with sleek footprint
10-Year Manufacturer Warranty
