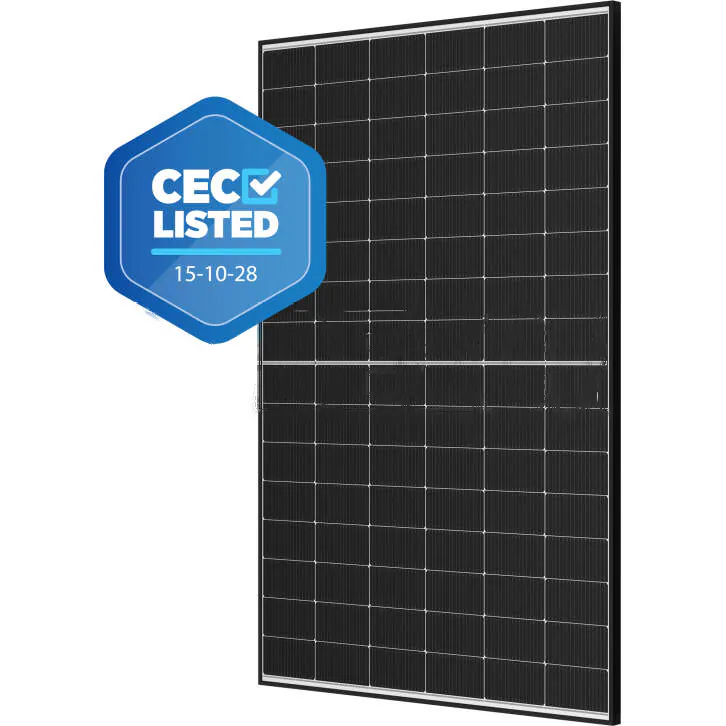

Trina 465 Watt 96 Cell VERTEX S+ N-TYPE i-TOPCon Ultra Dual Glass Monocrystalline 30mm Black Frame N Type Solar Panel

Who This Product Suits

This panel suits residential and commercial rooftop solar installations where a high-output, modern N-type module is preferred. It is a good fit for installers building systems around mainstream string inverters, optimisers or common rooftop mounting systems.

The black frame makes it suitable for customers who want a neater roof appearance without moving into a full-black panel. It is also well suited to Australian conditions where panel temperature performance, durability and long service life are important.

Specifications Explained

The 465W rating means each panel can produce up to 465 watts under standard test conditions. N-type i-TOPCon Ultra technology is used to improve efficiency, reduce electrical losses and support stronger long-term output compared with older P-type panel designs.

The panel has a positive power tolerance, meaning the supplied module should not be rated below its nameplate output under factory test conditions. The temperature coefficient of power is around -0.29% per °C, which is useful in hot roof conditions because output falls less sharply as panel temperature rises.

The dual-glass construction gives the panel glass on both the front and rear, helping with durability, weather resistance and protection against rear-side scratches or micro-crack risk. The panel is rated for 1500V DC system design and is commonly listed with MC4 EVO2 compatible connectors, depending on batch and certification.

Trina lists this Vertex S+ type with a long performance warranty, with first-year degradation around 1% and annual degradation around 0.4% after that. That means the panel is designed to retain a high share of its original output over a long operating life.

Summary

The Trina 465 Watt 96 Cell VERTEX S+ N-TYPE i-TOPCon Ultra Dual Glass Monocrystalline 30mm Black Frame N Type Solar Panel is a strong option for customers wanting a reliable, higher-efficiency rooftop solar panel from a major global manufacturer. It combines 465W output, N-type i-TOPCon Ultra cells, dual-glass construction and a black-frame finish in a format suited to both residential and commercial installs.

For installers, the key benefits are straightforward: good output per panel, modern N-type performance, strong heat behaviour, mainstream inverter compatibility and a durable module design backed by Trina’s long-term warranty structure.

Further Information From The Manufacturer

High customer value

• Suitable for residential and C&I rooftop
• Perfect size and low weight for handling and installation
• Compatible with mainstream inverters and diverse mounting systems
• Mechanical test load up to 5400 Pa front side and 4000 Pa back side
• Certifed lifetime carbon footprint assessment

HIgh reliability with light doubel glass

• Less prone to micro-cracks and scratches on the back side
• Fire Safety Class rating C, Safety Class II
• Up to 25 years product warranty and 30 years power warranty

High power up to 475 Watt

• Up to 23.8% module eciency, on 210 innovative platform
• Patented i-TOPCon technology with continuous effciency improvement, including contact resistance reduction, rear reflection enhancement and edge quality repairment
